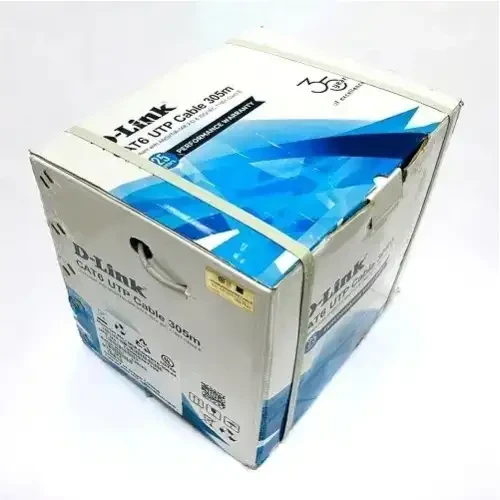

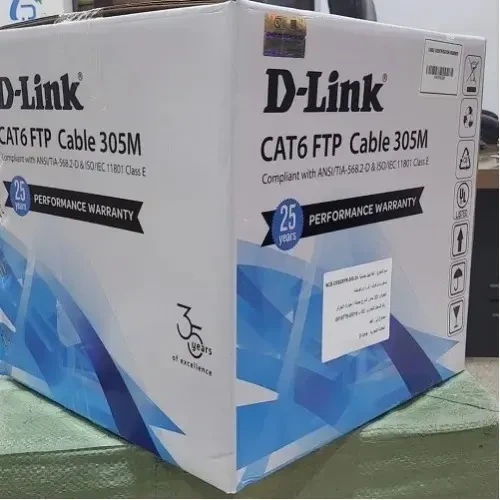

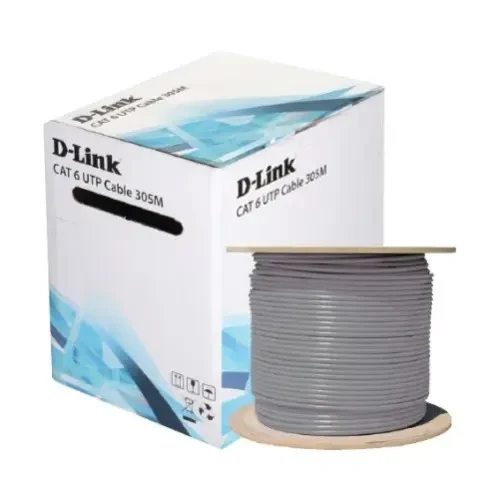

It comes in box of 305 meters Gray colour rolls and is wrapped in a flame-retardant FR-PVC jacket designed for safe, indoor LAN deployments.

  is an enhanced-performance, 4-pair unshielded twisted pair copper media designed for high-speed data, digital/analogue voice, and video (RGB) signal transmission over Local Area Networks (LANs). Engineered for high structural integrity, it integrates a polyethylene (PE) central cross separator to maximize signal-to-noise ratios and minimize near-end crosstalk (NEXT). It is optimized for cost-effective Gigabit Ethernet deployment across corporate networks, data centers, and educational infrastructures.

Architectural & Physical Construction

1. Conductor Material: 100% Solid Bare Copper (ensures optimal transmission velocity and electrical integrity).
2. Conductor Gauge: 24 AWG with a nominal wire diameter of 0.510mm to 0.520mm.
3. Insulation Compound: High-Density Polyethylene (HD-PE), with a nominal outer insulation diameter of 0.940mm.
4. Core Separation: Integrated PE Central Cross Isolator to maintain pair geometry and mitigate alien crosstalk.
5. Outer Sheath: Flame-Retardant Polyvinyl Chloride (FR-PVC) compliant with UL94V-0 safety ratings, finished in industry-standard gray.
6. Overall Cable Diameter: 5.6mm to 5.7mm (±0.3mm tolerance).
7. Cable Jacket Markings: Sequential metric length counters printed systematically along the outer jacket for precise containment mapping.

Mechanical & Environmental Parameters

1. Operational Thermal Range: Rated to function optimally between -20°C and +70°C.
2. Bending Radius Limit: Must maintain a minimum radius of < 4 times the external cable diameter at low temperatures.
3. Maximum Pulling Tension: Rated up to 11.5 Kilograms (Kg) of mechanical pulling force.
